12555

Price: $15.29
Core Charge: $0.00
Available: 0
Drum, 904/A500 Direct (4 Clu) (1 Bushing)(6"OD At Lugs) 1971-89 (Can Use For 1960-71 If Customer Uses 12336 or 12336B)

12555A

Price: $35.88
Core Charge: $0.00
Available: 0
Drum, 904/A500 Dir(5 Clu, 1 Bushing)6" OD At Lugs 71-89

12555AA

Price: $47.36
Core Charge: $0.00
Available: 0
Drum, 904/A500 Dir(5 Clu, 1 Bushing)6 1/4" OD At Lugs 90-Up

12555AB

Price: $47.84
Core Charge: $0.00
Available: 0
Drum, 904/A500 Dir(4 Clu, 1 Bushing)6 1/4" OD At Lugs 90-Up

12555B

Price: $48.68
Core Charge: $25.00
Available: 4
Drum, 904/A500 Dir(5 Clu, 2 Bushing)(Outer O-Ring # 337 Goes On The Piston)92-Up(Can Use 12555CAK)

12555C

Price: $52.89
Core Charge: $0.00
Available: 0
Drum, 904/A500 Dir (4 Clu)(2 Bushing)(Outer O-Ring #337 Goes On The PIston) 1992-Up

12555CAK

Price: $72.69
Core Charge: $0.00
Available: 1
Drum Kit, 904/A500 Dir(4 Clu Made Into 6 Clu)(2 Bushing)(Outer O-Ring # 337 Goes On The Piston)92-Up(Kit Contains Drum, Piston, 1 Fri, and 1 Steel)

12555D

Price: $50.88
Core Charge: $0.00
Available: 6
Drum, 904/A500 Dir(4 Clu, 2 Bushing)(Outer O-Ring # 337 Goes Inside Of The Drum)(Steels Have V Notched Teeth)99-Up

12555DA

Price: $52.86
Core Charge: $0.00
Available: 0
Drum, 904/A500 Dir(5 Clu, 2 Bushing)(Outer O-Ring # 337 Goes Inside Of The Drum)(Steels Have V Notched Teeth)99-Up

U12555C

Price: $12.17
Core Charge: $0.00
Available: 0
Drum, A604/A500 Dir (4 Clu)(2 Bushing)(Outer O-Ring #337 Goes On The Piston) 1992-Up

U12555D

Price: $12.17
Core Charge: $0.00
Available: 0
DRUM, 904/A500 DIR(4 CLU, 2 BUSHING)(OUTER O-RING # 337

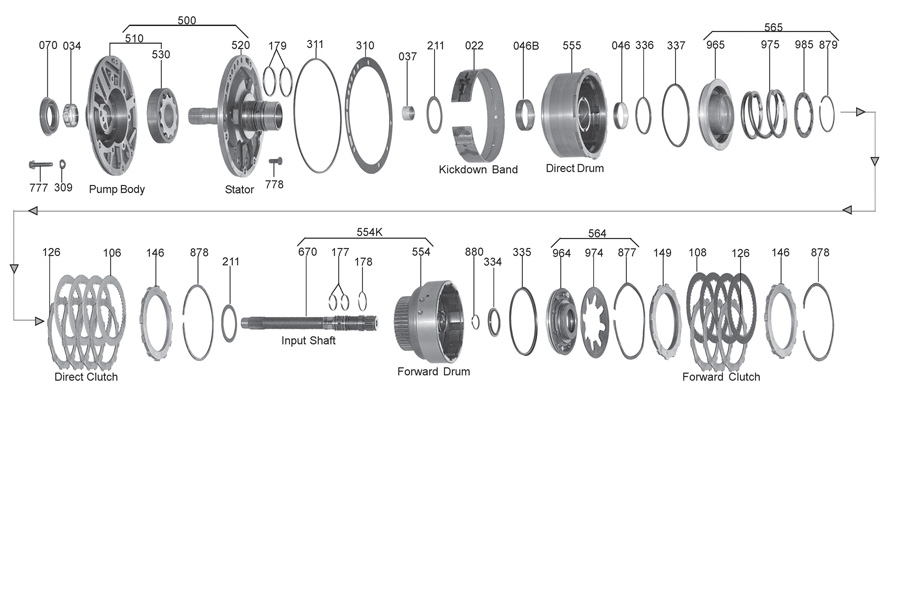

A500 Parts

A500 (Parts Not Pictured , kits, manuals, etc)

Click on a section to see a detailed view.
Click on a part number to view part variations, pricing, and availability.
Use the link above to browse parts not shown in the diagram

74_pump
